Program settings

Use menu command File - Settings... or press F12 to access program settings.

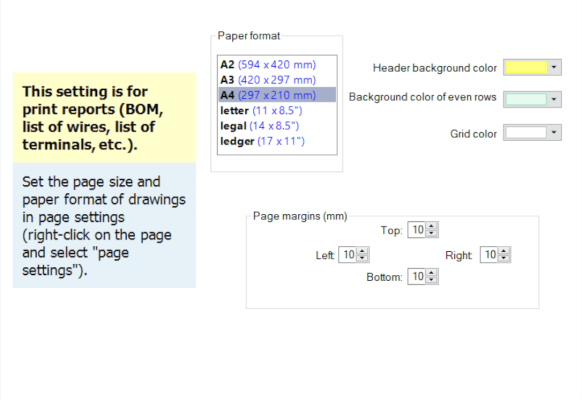

You can make the following settings in this dialog box:

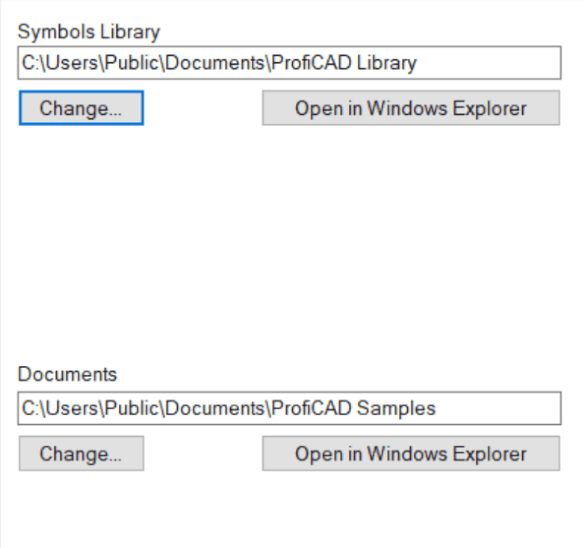

System - Paths

Symbols library

Set the main path (root directory), where all symbols are stored (PPD and PICD files).

Open in Windows Explorer

This button opens Windows Explorer in the directory where your ProfiCAD library is located. Useful when you need to manipulate the contents of the library (rename, move or delete files and directories).

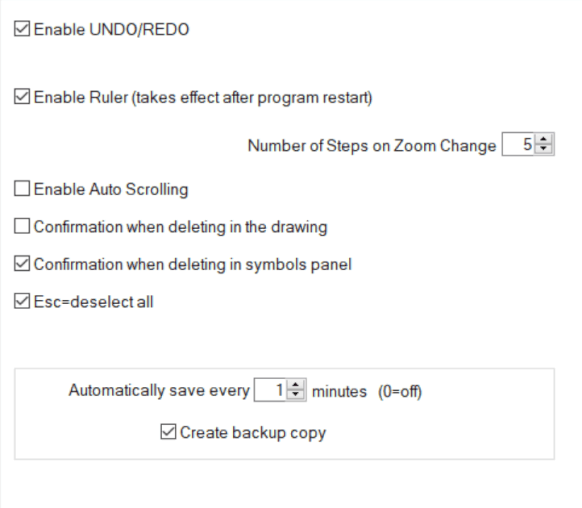

System - Control

Enable UNDO/REDO

The UNDO/REDO function allows you to cancel the last action. In this dialog box you can disable the undo/redo function (for instance if your computer is not fast enough and has problems running with this functionality on).

Enable active wiring

Allows you to activate/deactivate the active wiring functionality. When you move a symbol, all wires attached to the symbol stay attached.

Number of steps on zoom change

The zoom is being changed continuously to prevent eye fatigue. This tab allows you to set the number of redrawing steps when the zoom is changed.

Enable auto scrolling

When you move the mouse pointer to the edge of your working area, the drawing scrolls in the appropriate direction.

Confirmation when deleting

Activates/deactivates the message "Delete selected objects?" when deleting objects.

Auto-Save

Enables save documents automatically. Auto-Save saves only documents that have been saved manually before.

Option Create backup copy creates a backup copy of the document on every save. The backup copy replaces the previous backup copy. The backup copies have extension BAK and they are saved to the same folder as the document.



System - Symbols

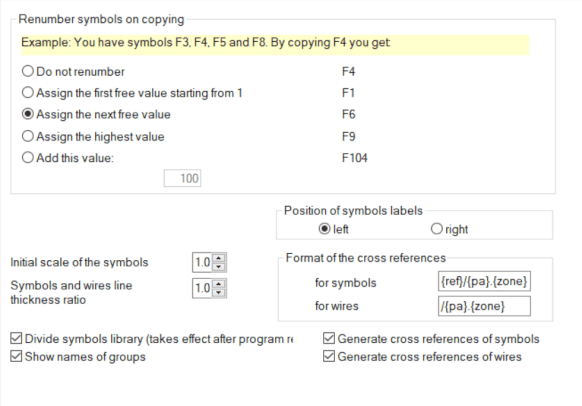

Renumbering symbols on copying

Here you can set what will happen with the "reference" value (e.g. index - for example for the R10 type the index is number 10) when copying one or more parts.

The first option "Do not renumber" does not change the index value when copying (duplicate index will be created).

The second option "Assign the nearest value" the copied symbol will be assigned the nearest possible index value.

The third option "Add this value" means that the index of the copied symbol will be increased by the value you specified. In this last case, there is no duplicity check.

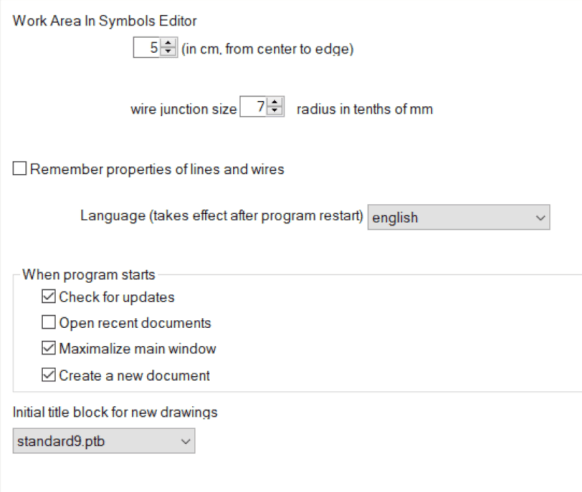

System - Others

Working area in Symbol Editor

If you draw larger symbols you can set up a higher value.

Character map

You can set up the characters you would like to add in the character map, which is displayed when entering texts in a document. The characters may be entered using Alt + numeric code (if you know the code) or via the standard Windows character map.

Use initial values of lines and wires

If you change color or thickness of a line or a wire, the next line or wire will be drawn with the same color and thickness. Not everybody may like this feature and that is why you need to switch it on in Program settings - Others - Use initial values of lines and wires.

Language

This setting allows changing the language of the program.

Check for updates at program start

At program start ProfiCAD checks whether a newer version is available. If yes, it is downloaded and installed. In such case, you will be prompted to save your work, because the program will need to restart.

It is recommended to leave this setting on, so you always have the latest version. If you do not have permanent internet connection, please check for updates occasionally using Windows menu Start - Program Files - ProfiCAD - Check for updates.



Document - Size

Dialog box Document - Size offers two options to enter the drawing area:

a) specify the size of the drawing directly in mm

b) derive the size of the drawing from the size and number of the sheets of paper.

Because the printable area of the paper depends on the printer, you should select the printer (using the button Setup). You can specify the number of sheets of paper the width and height. The program calculates the total size of the drawing.

This dialog box is used only to specify the size of the drawing, not to determine on what format of paper it will be printed. This is so because sometimes the same document printed on one sheet of example A2, sometimes on 4 sheets A4 paper size, etc. The selection is therefore carried out just before printing in the Print dialog box.

We recall that the printable area of paper for each printer is slightly different. Therefore it is appropriate to calculate with a reserve, and leave some space around the borders of the drawing.

Zoom

This is the print scale.

Include page margins in the drawing area

This option should be enabled by default.

This option should be disabled only for drawings created in version 6 or earlier. In version 6, the drawing area matched the printable area of the printer. The margins were very thin. The version 7 introduced adjustable margins with a default value of 1 cm. This reduced the drawing area. This option was implemented to enable the drawings from version 6 to fit the new area. If disabled, the objects are printed slightly smaller in order to gain a place for the margins.



Document - Fonts

The settings for "Letterings" and "Texts" are only initial settings, which can be later modified for each text individually.



Document - Contents

Show types and values

You can activate/deactivate displaying of all types and values (so you do not need to activate/deactivate every individual value and type).

Framing

Activates/Deactivates the frame around the diagram and the title block.



Document - Description

Place for description of the project.

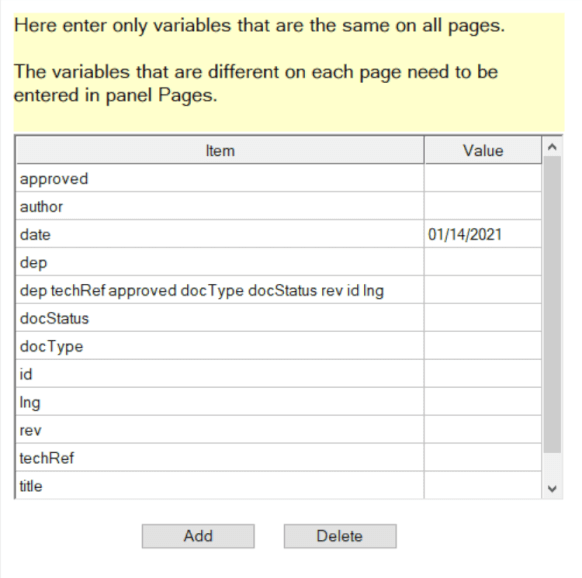

Data fields

Here enter the data fields for the title block.

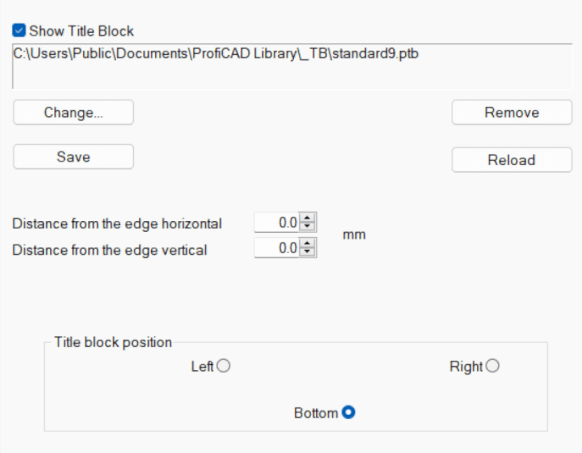

Title block

Use this dialog to insert a title block into your drawing. More info here.

title block

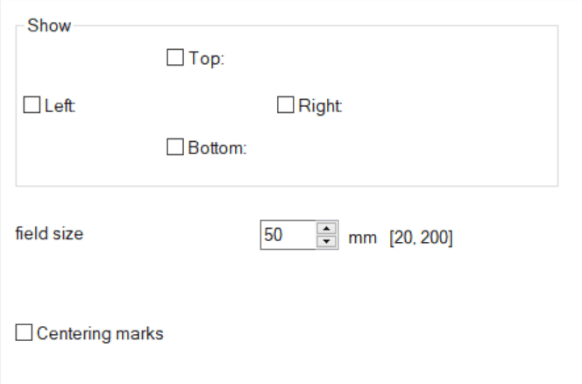

Reference grid

The reference grid is used for better orientation in large drawings.

reference grid
